• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 196070

• • Brand: Radiobell

• Number of Tubes
• 6

• Valves / Tubes
• 6K8G 6K7G 6Q7G 6V6G Y63 5Z4G

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 115; 125; 135; 150; 220; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

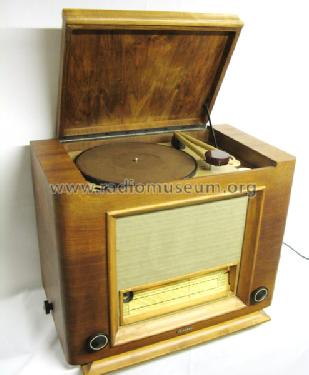

• Model: Radiobell Gram 48 - Bell Telephone Mfg. Co.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 540 x 345 mm / 23.6 x 21.3 x 13.6 inch

• Notes
• Thorens Cadence turntable built in.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Author
• Model page created by Hartmut Daniels † 22.11.16. See "Data change" for further contributors.

• Other Models

• Here you find 281 models, 242 with images and 113 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
