• Country
• United States of America (USA)

• Manufacturer / Brand
• Radio City Products Company, Inc.(RCP); New York

• Year
• 1954 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 292907

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 12BA6

• Tuned circuits
• 1 AM circuit(s)     1 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 85-135 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

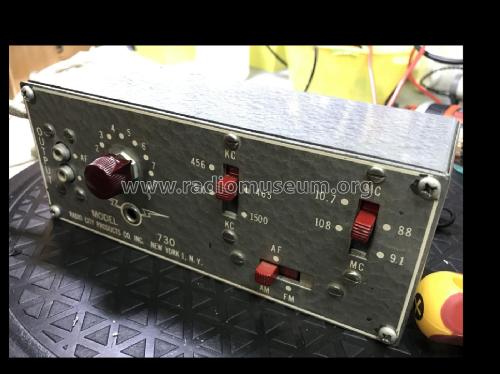

• Model: Signal Generator 730 - Radio City Products Company,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 7 x 2 x 2 inch / 178 x 51 x 51 mm

• Notes

• 2 outputs, RCA plugs RF & AF

  RF OUTPUTS
    AM Frequencies
        RF 550khz,1500khz
        IF  456khz, 465khz

    FM Frequencies
        RF 88mhz, 108mhz
        IF  10.7mhz, 9.1mhz
        RF deviation +/- 500khz, 400hz

  AF OUTPUT
    Unknown assumed 400hz



• Mentioned in
• Radio News (1954 page 9 Model 730 Signaligner)

• Author
• Model page created by Ronald Moreau. See "Data change" for further contributors.
