• Country
• France

• Manufacturer / Brand
• Radio JD (J.D.), Jouanique et Daganaud; Saint-Cloud

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 285599

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 6K7G 25L6 25Z5

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s); Anode bend detection

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

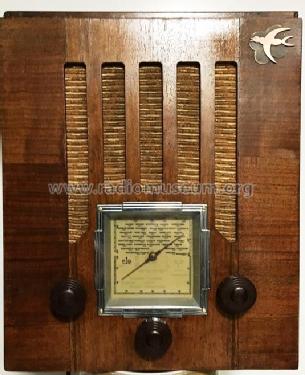

• Model: S 543 F - Radio JD J.D., Jouanique et

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 280 x 350 x 290 mm / 11 x 13.8 x 11.4 inch

• Net weight (2.2 lb = 1 kg)
• 5.1 kg / 11 lb 3.7 oz (11.233 lb)

• Author
• Model page created by Rolf Beckers. See "Data change" for further contributors.
