Ampli A10 /10

Ampli A10 /10; Radiola marque (ID = 2099862) Ampl/Mixer Ampli A10 /10; Radiola marque (ID = 2099865) Ampl/Mixer
Ampli A10 /10; Radiola marque (ID = 2099868) Ampl/Mixer Ampli A10 /10; Radiola marque (ID = 2099869) Ampl/Mixer

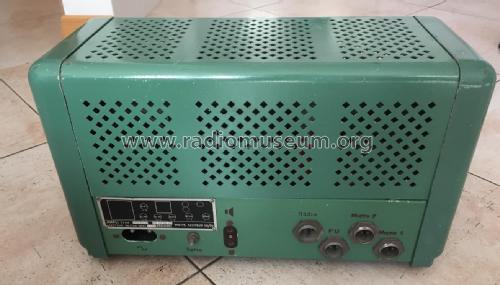

Ampli A10 /10; Radiola marque (ID = 2099870) Ampl/Mixer Ampli A10 /10; Radiola marque (ID = 2099872) Ampl/Mixer
Use red slider bar for more.
Ampli A10 /10; Radiola marque (ID = 2099862) Ampl/Mixer
Radiola marque: Ampli A10 /10 [Ampl/Mixer] ID = 2099862 1269x790
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ampli A10 /10, Radiola (marque):
Radiola A10

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1949 ? Category: Audio Amplifier or -mixer
Valves / Tubes 6: EF40 EF40 ECH3 EL3N EL3N AX1
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 90-260 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (undistorted)
from Radiomuseum.org Model: Ampli A10 /10 - Radiola marque
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 400 x 230 x 210 mm / 15.7 x 9.1 x 8.3 inch
Notes

The /01 chassis is fitted with EF36 preamp tubes. This late /10 chassis has EF40 tubes. The EF40 sockets are on metal plate adapters to cover the bigger holes on the chassis. This amplifier is identical to Philips France AM 500, but the tube cover has a different design.

Équivalent au Philips AM500 /10.

Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)

Model page created by Paolo Canali. See "Data change" for further contributors.



All listed radios etc. from Radiola (marque)
Here you find 812 models, 499 with images and 232 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
