Compact Disc Player CD1104 /78

Compact Disc Player CD1104 /78; Radiola marque (ID = 2376628) R-Player Compact Disc Player CD1104 /78; Radiola marque (ID = 2376630) R-Player
Compact Disc Player CD1104 /78; Radiola marque (ID = 2376631) R-Player
Use red slider bar for more.
Compact Disc Player CD1104 /78; Radiola marque (ID = 2376628) R-Player

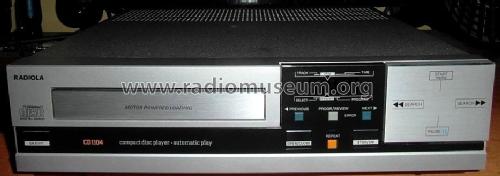

Radiola marque: Compact Disc Player CD1104 /78 [R-Player] ID = 2376628 933x330
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compact Disc Player CD1104 /78, Radiola (marque):
Sold on sieradzak.pl item 557515 seller wojtas783

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1984 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Compact Disc Player CD1104 /78 - Radiola marque
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 320 x 86 x 300 mm / 12.6 x 3.4 x 11.8 inch
Notes

An early compact disc player with a Philips CDM-1 laser transport mechanism, 2 x TDA1540P 14 bit DACs and an SAA7030 4 times oversampling digital filter.

Specification
Frequency range ...............:  20Hz-20kHz ± 0.3 dB
Signal to noise ratio ...........:  > 90 dB (20Hz-20kHz)
Channel separation ...........:  > 86 dB (20Hz-20kHz)
Total harmonic distortion ...:  < 0.005%
Intermodulation distortion ..:  < 0.005%
Audio Output Level............:  2 V rms
Power Requirement ..........: 220 V AC 50Hz

Same as the Philips CD104 model with Radiola labels for the French market.

Made in Belgium

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Literature/Schematics (1) - - Manufacturers Literature (Philips CD104 Service Manual dated 1984-11-15)

Model page created by Howard Craven. See "Data change" for further contributors.
