FK-419-29

FK-419-29; Radiola marque (ID = 105587) Radio FK-419-29; Radiola marque (ID = 105588) Radio
FK-419-29; Radiola marque (ID = 105582) Radio FK-419-29; Radiola marque (ID = 105586) Radio
Use red slider bar for more.

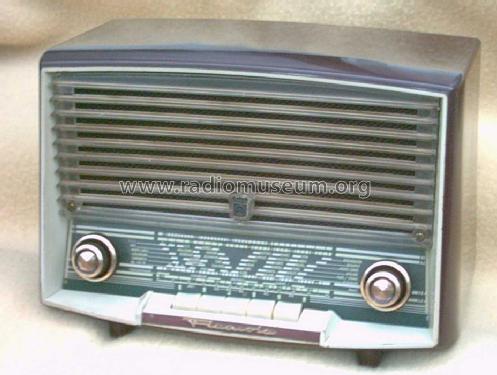

FK-419-29; Radiola marque (ID = 105587) Radio
Radiola marque: FK-419-29 [Radio] ID = 105587 929x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model FK-419-29, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1958 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF80 UCL82 UY85
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: FK-419-29 - Radiola marque
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 330 x 240 x 180 mm / 13 x 9.4 x 7.1 inch
Notes Chassis ist identisch mit Philips B3F70A

Model page created by Peter Hoddow. See "Data change" for further contributors.
