Radiolo RA137A

Radiolo RA137A; Radiola marque (ID = 2363663) Radio Radiolo RA137A; Radiola marque (ID = 2363664) Radio
Radiolo RA137A; Radiola marque (ID = 2363665) Radio Radiolo RA137A; Radiola marque (ID = 2363666) Radio
Radiolo RA137A; Radiola marque (ID = 2363667) Radio Radiolo RA137A; Radiola marque (ID = 2363668) Radio
Radiolo RA137A; Radiola marque (ID = 806970) Radio
Use red slider bar for more.
Radiolo RA137A; Radiola marque (ID = 2363663) Radio
Radiola marque: Radiolo RA137A [Radio] ID = 2363663 1400x1044
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiolo RA137A, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF80 UCL82 UY85
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 117; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Radiolo RA137A - Radiola marque
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 230 x 140 x 110 mm / 9.1 x 5.5 x 4.3 inch
Notes

2 gammes d'ondes : OC de 24 à 51 m et PO de 185 à 575 m. Cadre ferrite de 20 cm.

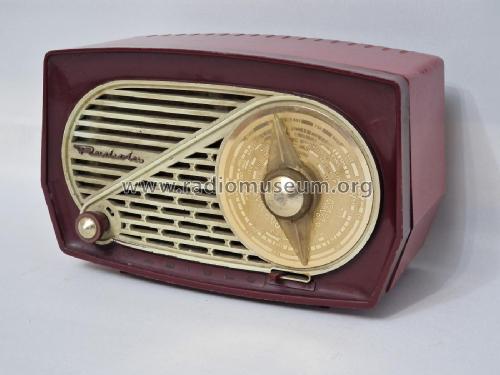

Coffre moulé en deux parties, bordeaux ou ivoire.

Équivalent au Philips Philetta B1F04A.

Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Mentioned in -- Original-techn. papers.

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Radiola (marque)
Here you find 810 models, 498 with images and 230 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Radiola marque: Radiolo RA137A
Threads: 1 | Posts: 2
Hits: 1069     Replies: 1
sfrradiola: RA137A;
Jean-Luc Prevot
31.Oct.15
  1

attention : la description comporte une erreur. il ne possede pas PO/GO mais PO/OC.

en fait c'est la copie du philips B1F04A. Ces 2 postes étaient prévu pour l'export .

Mark Hippenstiel
21.Jun.16
  2

Merci Jean-Luc, l'information du modèle a été mis à jour.

Cordialement,
Mark


Radiola marque: Radiolo RA137A
End of forum contributions about this model
