RA278A

RA278A; Radiola marque (ID = 1678448) Radio

RA278A; Radiola marque (ID = 1678900) Radio

RA278A; Radiola marque (ID = 1678901) Radio

RA278A; Radiola marque (ID = 1678450) Radio
RA278A; Radiola marque (ID = 239320) Radio
Use red slider bar for more.

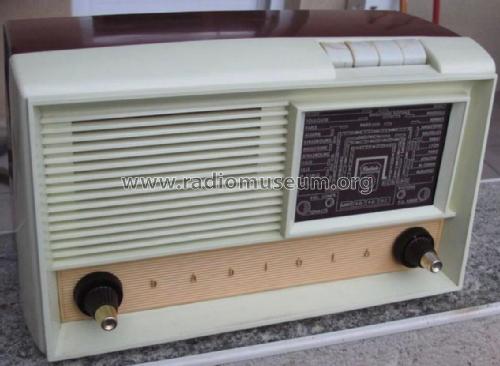

RA278A; Radiola marque (ID = 239320) Radio
Radiola marque: RA278A [Radio] ID = 239320 932x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA278A, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UY85 UBF80 UCH81 UCL82
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 6 AF stage(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 124; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.7 cm = 5 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: RA278A - Radiola marque
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 310 x 200 x 160 mm / 12.2 x 7.9 x 6.3 inch
Notes

Chassis same as Philips B2F80A. Colours: bordeaux/ivory, ivory in two shades, grey in two shades. With four push buttons.

Dial lamp: 20V/0,1A. Power supply with autotransformer.

Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)
Source of data -- Collector info (Sammler)

Model page created by John Koster. See "Data change" for further contributors.
