For model RA369A, Radiola (marque):
Radiola RA369A

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECF80 UCH81 UBF89 UCL82 UY85
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: RA369A - Radiola marque
Material Moulded (Bakelite or Plastics)

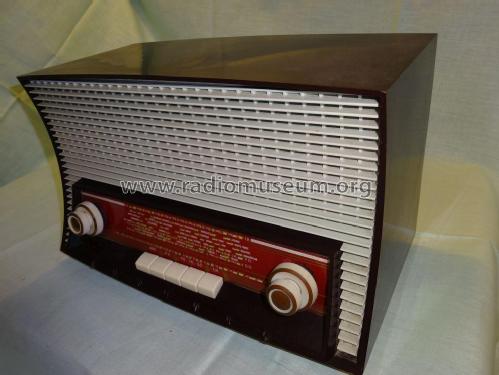

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 360 x 220 x 210 mm / 14.2 x 8.7 x 8.3 inch
Notes Same chassis as Philips B3F85A. Colours: bordeaux, front light grey, ivory, front orange or dark grey. Five push buttons.
Net weight (2.2 lb = 1 kg) 5.7 kg / 12 lb 8.9 oz (12.555 lb)
Source of data Le grand livre de la TSF

Model page created by Patrice Zeissloff. See "Data change" for further contributors.
