• Year
  • 1932
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 102030
    • Brand: SFER

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • TRF without regeneration
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

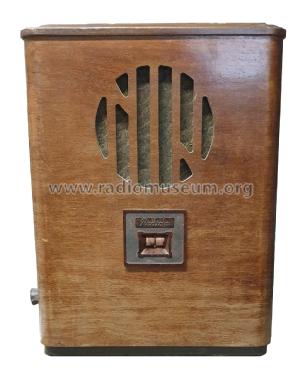

  • Model: RA535A - Radiola marque
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 400 x 500 x 250 mm / 15.7 x 19.7 x 9.8 inch
  • Notes
  • Au lieu de RA535A vous pouvez trouver aussi 535A comme dénomination.
    The RA535A is a Super-inductance. Loudspeaker 2055. The Philips tube line would be two times E452T, 2 times E424 or E424N, C443 and 506. Philips 720A features also the same chassis.
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by John Koster. See "Data change" for further contributors.
