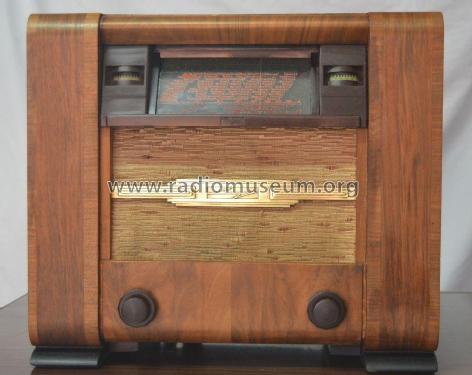

RA56A -20; Radiola marque (ID = 1967497) Radio
Radiola marque: RA56A -20 [Radio] ID = 1967497 933x875
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA56A -20, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF5 EBC3 EL3 EZ3
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: RA56A -20 - Radiola marque
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 420 x 280 mm / 18.9 x 16.5 x 11 inch
Notes

Équivalent au Philips Sérénade 695A -20.

Mentioned in -- Original prospect or advert (Gamme 1937)

Model page created by Nicolaas van Dijk. See "Data change" for further contributors.
