RA 42A-20

RA 42A-20 ; Radiola marque (ID = 1043632) Radio

RA 42A-20 ; Radiola marque (ID = 1043633) Radio
RA 42A-20 ; Radiola marque (ID = 1426628) Radio RA 42A-20 ; Radiola marque (ID = 1427243) Radio
RA 42A-20 ; Radiola marque (ID = 1427871) Radio RA 42A-20 ; Radiola marque (ID = 1426540) Radio

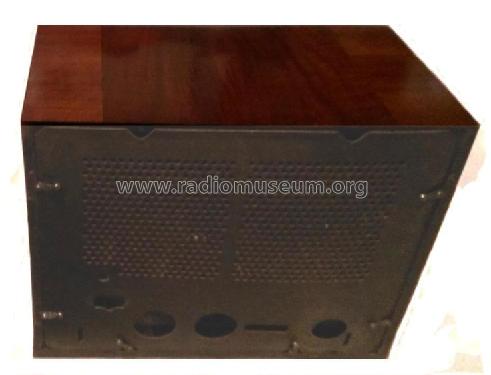

RA 42A-20 ; Radiola marque (ID = 1427242) Radio RA 42A-20 ; Radiola marque (ID = 1427245) Radio
RA 42A-20 ; Radiola marque (ID = 1427872) Radio
Use red slider bar for more.
RA 42A-20 ; Radiola marque (ID = 1426628) Radio
Radiola marque: RA 42A-20 [Radio] ID = 1426628 770x618
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA 42A-20, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF5 EB4 EL3 EZ2
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RA 42A-20 - Radiola marque
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 350 x 280 mm / 16.9 x 13.8 x 11 inch

Model page created by Richard Winter. See "Data change" for further contributors.



All listed radios etc. from Radiola (marque)
Here you find 824 models, 519 with images and 268 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
