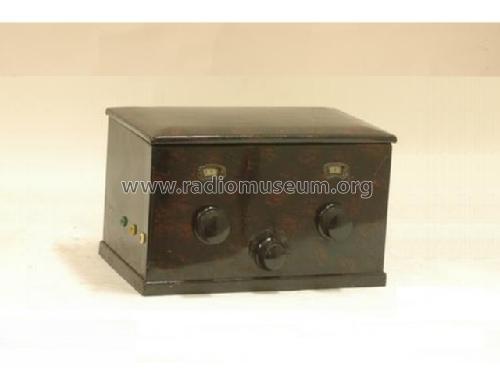

Radiola 37

Radiola 37 ; Radiola marque (ID = 2575661) Radio Radiola 37 ; Radiola marque (ID = 2575662) Radio
Radiola 37 ; Radiola marque (ID = 1370229) Radio
Use red slider bar for more.
Radiola 37 ; Radiola marque (ID = 2575661) Radio
Radiola marque: Radiola 37 [Radio] ID = 2575661 1400x994
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 37, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4:
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100-250 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Radiola 37 - Radiola marque
Material Metal case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes

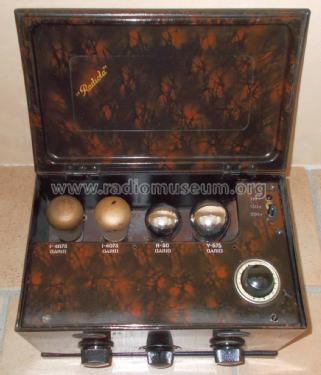

Récepteur secteur à 4 tubes (3 lampes plus valve) intérieures pour émissions locales.

Coffret métallique verni et laqué marbrée.

Le catalogue Arc-Radio recommande le haut-parleur Radiolavox 30 pour ce modèle.

Literature/Schematics (1) Catalogue Arc-Radio 1932

Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
