Radiolina 1 P1 culot en Y (B4 grand)
Radiola (marque)
- Country
- France
- Manufacturer / Brand
- Radiola (marque)
- Year
- 1923 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 290878
-
- Brand: SFER

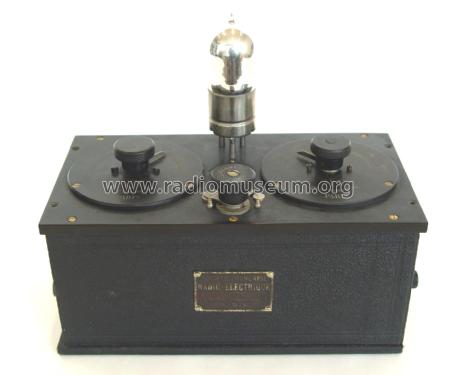

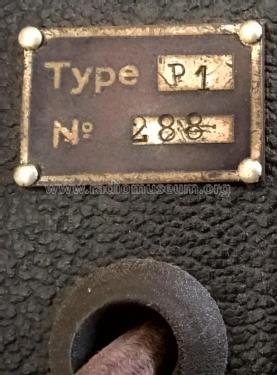

Collection privée (réf.: 2467)
Collection privée (réf.: 2467)
Collection privée (réf.: 2467)
Collection privée (réf.: 2467)
- Number of Tubes
- 1
- Valves / Tubes
- TM_Culot-Y
- Main principle
- TRF with regeneration
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 4 & 80 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: Radiolina 1 P1 [culot en Y ] - Radiola marque
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 280 x 220 x 140 mm / 11 x 8.7 x 5.5 inch
- Notes
-

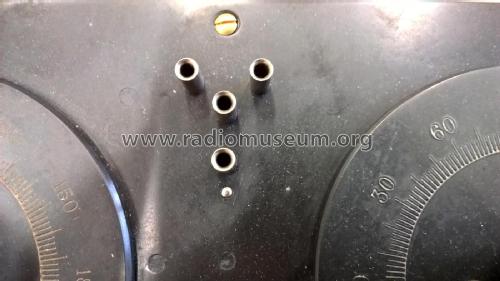

This model uses the rare "Y" socket (4 pins of the 5 pin Bigrille socket). There is also a version with standard B4 sockets.
Voir aussi modèle B4 avec culot B4 standard.
- Net weight (2.2 lb = 1 kg)
- 1.6 kg / 3 lb 8.4 oz (3.524 lb)
- Mentioned in
- TSF Antique 1921 à 1927 (Page 148)
- Author
- Model page created by Musée des Radios Museum. See "Data change" for further contributors.
