Sfer 34

Sfer 34 ; Radiola marque (ID = 680016) Radio

Sfer 34 ; Radiola marque (ID = 1671150) Radio
Sfer 34 ; Radiola marque (ID = 228118) Radio Sfer 34 ; Radiola marque (ID = 228119) Radio
Sfer 34 ; Radiola marque (ID = 349237) Radio Sfer 34 ; Radiola marque (ID = 1756979) Radio
Sfer 34 ; Radiola marque (ID = 1756981) Radio Sfer 34 ; Radiola marque (ID = 1756982) Radio
Sfer 34 ; Radiola marque (ID = 1756984) Radio Sfer 34 ; Radiola marque (ID = 1756985) Radio
Sfer 34 ; Radiola marque (ID = 1756986) Radio Sfer 34 ; Radiola marque (ID = 1756987) Radio
Use red slider bar for more.

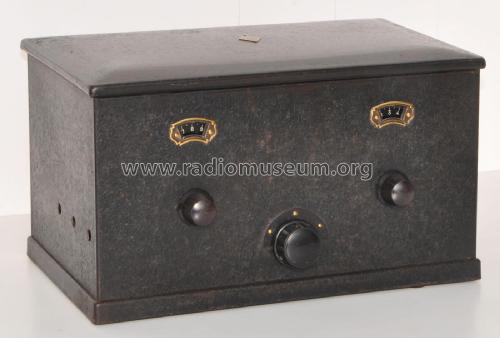

Sfer 34 ; Radiola marque (ID = 228118) Radio
Radiola marque: Sfer 34 [Radio] ID = 228118 700x453
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sfer 34, Radiola (marque):
From the collection of TSF Radio

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: R662_4pin or R678_4pin R662_4pin or R678_4pin R656_4pin or R675_4pin V675
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110 or 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Sfer 34 - Radiola marque
Material Metal case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 300 x 200 x 180 mm / 11.8 x 7.9 x 7.1 inch
Notes

Récepteur à 4 lampes intérieures, montage à réaction. Lampes à chauffage direct sous 0.6 volts.

Coffret en tôle givrée noire ou marron.

Ce modèle très probablement sorti en 1929 seulement, il n'y a pas d'indication pour une date antérieure. Reste a déterminer.

Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)
Price in first year of sale 595.00 FRF
Mentioned in L'Illustration (Oct. 1929)
Literature/Schematics (1) La Nature, 1929, 2ème, p.186
Literature/Schematics (2) -- Original prospect or advert (La Radio per Tutti, 15.10.1929)
Literature/Schematics (3) Catalogue No. 30, Librairie Fernand Nathan

Model page created by John Koster. See "Data change" for further contributors.
