• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Ultimate (Brand), Radio Ltd. & Radio (1936) Ltd.; Auckland

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 174512

• Number of Tubes
• 5

• Valves / Tubes
• 2A7 58 57 2A5 80

• Main principle
• Superheterodyne (common); 1 AF stage(s); Anode bend detection

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

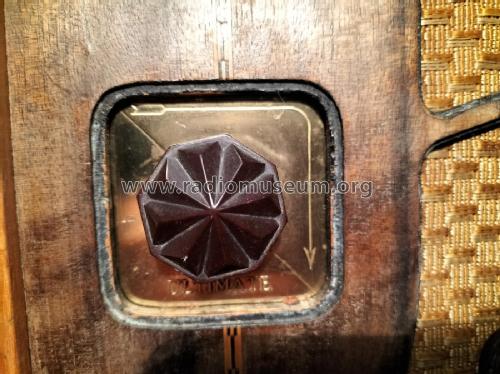

• Model: Ultimate 514 Ch= JCL - Ultimate Brand, Radio Ltd. &

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 390 x 230 x 210 mm / 15.4 x 9.1 x 8.3 inch

• Mentioned in
• John Stokes' "More Golden Age of Radio" P130.

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
