Radio Kit 5 Alterna Noval
Radiomanufacturas RHA Ltda; Barcelona
- Country
- Spain
- Manufacturer / Brand
- Radiomanufacturas RHA Ltda; Barcelona
- Year
- 1955 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 225606

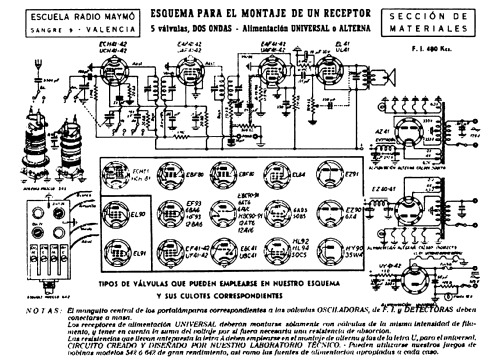

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Radio Kit 5 Alterna Noval - Radiomanufacturas RHA Ltda;
- Shape
- Chassis only or for «building in»
- Notes
-
Bobinas de sintonía y oscilador 2B, 2M y "Kanyón". Transformador de F.I. tipo "53".
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Rafael Monjo-Dalmau. See "Data change" for further contributors.
