• Country
• France

• Manufacturer / Brand
• Radiola (marque)

• Year
• 1990 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 250921

• • Brand: SFER

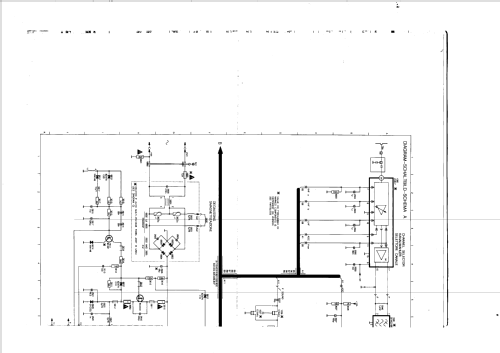

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 3.5 W (4 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 52KV1508 /16B - Radiola marque

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 470 x 485 mm / 19.7 x 18.5 x 19.1 inch

• Notes

• Price in Spain 60000.00 pte

• Net weight (2.2 lb = 1 kg)
• 14.5 kg / 31 lb 15 oz (31.938 lb)

• Author
• Model page created by Manuel Albano Neves. See "Data change" for further contributors.
