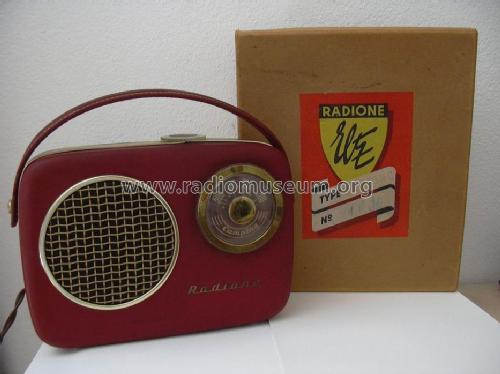

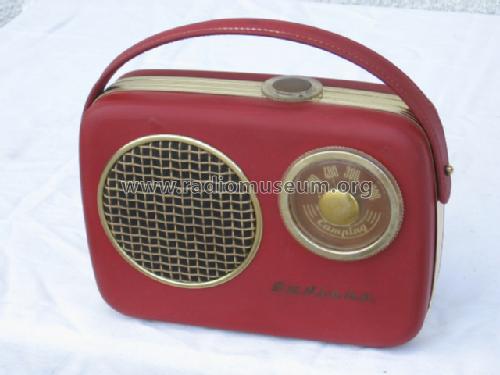

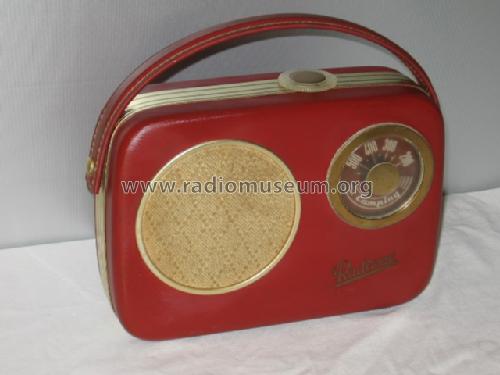

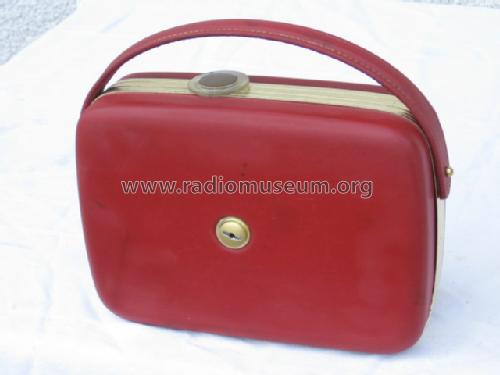

Camping ; Radione RADIO (ID = 3071) Radio
Radione RADIO: Camping [Radio] ID = 3071 547x491
Select picture or schematic to display from thumbnails on the right and click for download.
For model Camping, Radione (RADIO Nikolaus Eltz); Wien:
Radione Camping

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Brand

Eltz
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner

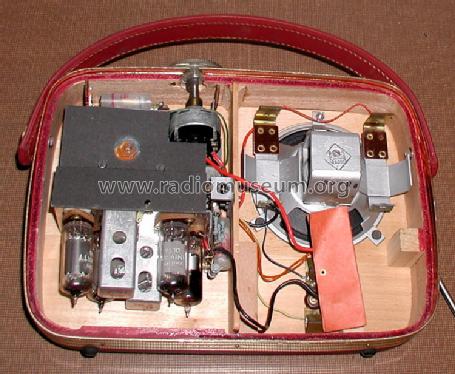

Valves / Tubes 4: DK96 DF96 DAF96 DL96
Main principle Super-Heterodyne (Super in general); ZF/IF 461 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 75 + 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Camping - Radione RADIO Nikolaus Eltz;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 235 x 160 x 75 mm / 9.3 x 6.3 x 3 inch

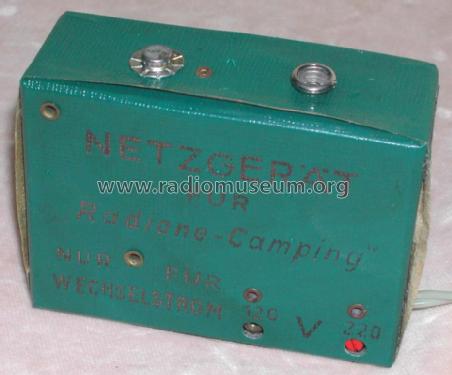

Notes sep.Netzg.
Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Price in first year of sale 780.00 ATS
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Original-techn. papers.
