Camping 2; Radione RADIO (ID = 53716) Radio
Radione RADIO: Camping 2 [Radio] ID = 53716 714x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Camping 2, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DL96
Main principle Superheterodyne (common); ZF/IF 459 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1,5 & 75 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Camping 2 - Radione RADIO Nikolaus Eltz;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)

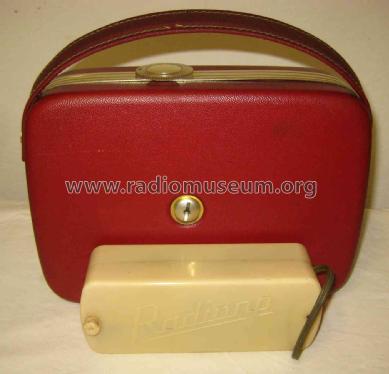

Notes separates, an Rückwand ansteck- und verschraubbares Netzteil, Preis 285,- Schilling.
Price in first year of sale 780.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Literature/Schematics (1) -- Original-techn. papers.
