• Year
  • 1967/1968
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 10499

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 3 x 3 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • from Radiomuseum.org

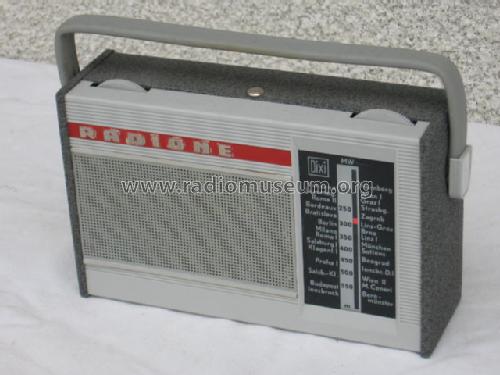

  • Model: Dixi - Radione RADIO Nikolaus Eltz;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 203 x 127 x 64 mm / 8 x 5 x 2.5 inch
  • Net weight (2.2 lb = 1 kg)
  • 0.7 kg / 1 lb 8.7 oz (1.542 lb)
  • Price in first year of sale
  • 798.00 ATS
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
