• Year
  • 1936/1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 10295

 Technical Specifications

  • Main principle
  • Superheterodyne (common); ZF/IF 128 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Material
  • Wooden case
  • from Radiomuseum.org

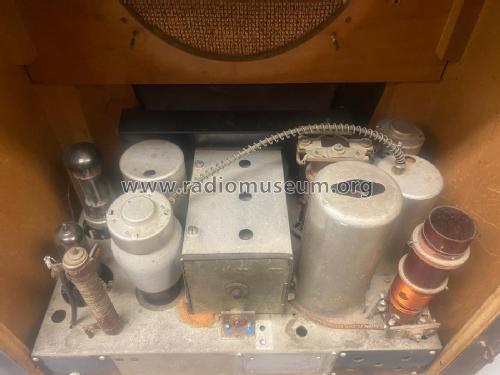

  • Model: Midget-Super AU43 - Radione RADIO Nikolaus Eltz;
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 360 x 405 x 245 mm / 14.2 x 15.9 x 9.6 inch
  • Notes
  • ZF128,5
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
