Midget-Super MSW

Midget-Super MSW; Radione RADIO (ID = 22169) Radio
Midget-Super MSW; Radione RADIO (ID = 939675) Radio Midget-Super MSW; Radione RADIO (ID = 939678) Radio
Midget-Super MSW; Radione RADIO (ID = 939676) Radio Midget-Super MSW; Radione RADIO (ID = 939677) Radio
Midget-Super MSW; Radione RADIO (ID = 711559) Radio Midget-Super MSW; Radione RADIO (ID = 355621) Radio
Midget-Super MSW; Radione RADIO (ID = 355618) Radio Midget-Super MSW; Radione RADIO (ID = 355622) Radio
Midget-Super MSW; Radione RADIO (ID = 355623) Radio Midget-Super MSW; Radione RADIO (ID = 355624) Radio
Use red slider bar for more.
Midget-Super MSW; Radione RADIO (ID = 939675) Radio

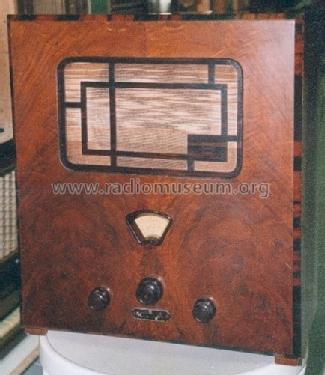

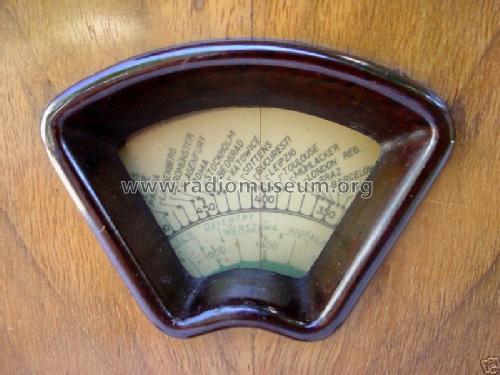

Radione RADIO: Midget-Super MSW [Radio] ID = 939675 650x691
Select picture or schematic to display from thumbnails on the right and click for download.
For model Midget-Super MSW, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: E446 E445 E424 E443 506
Main principle Superheterodyne (common); ZF/IF 128,5 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Midget-Super MSW - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 415 x 470 x 205 mm / 16.3 x 18.5 x 8.1 inch
Notes evtl. nur Export Schweiz
Net weight (2.2 lb = 1 kg) 11.3 kg / 24 lb 14.2 oz (24.89 lb)
Price in first year of sale 620.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
