R23 (6V)

R23 ; Radione RADIO (ID = 629420) Radio R23 ; Radione RADIO (ID = 629427) Radio
R23 ; Radione RADIO (ID = 447052) Radio R23 ; Radione RADIO (ID = 629423) Radio
R23 ; Radione RADIO (ID = 629426) Radio R23 ; Radione RADIO (ID = 629424) Radio
R23 ; Radione RADIO (ID = 629425) Radio R23 ; Radione RADIO (ID = 447048) Radio
R23 ; Radione RADIO (ID = 447054) Radio R23 ; Radione RADIO (ID = 447053) Radio
Use red slider bar for more.
R23 ; Radione RADIO (ID = 629420) Radio
Radione RADIO: R23 [Radio] ID = 629420 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model R23 (6V), Radione (RADIO Nikolaus Eltz); Wien:

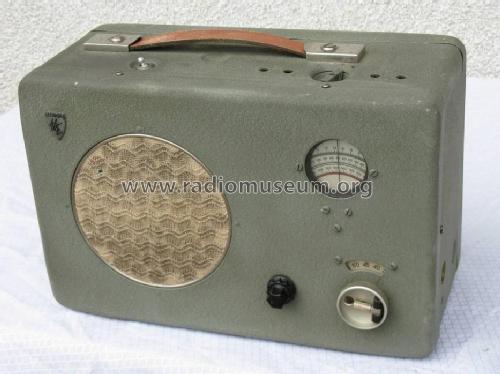

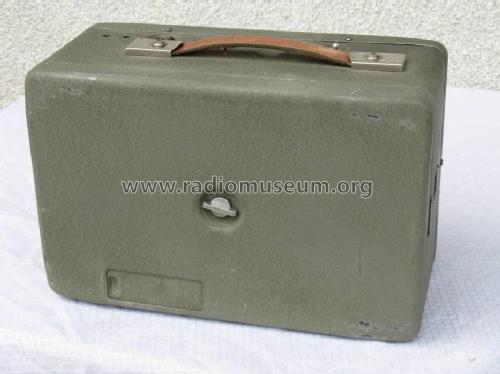

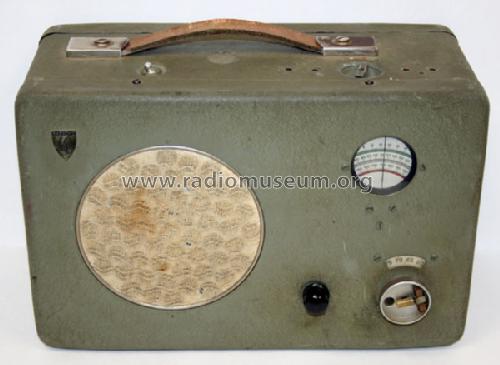

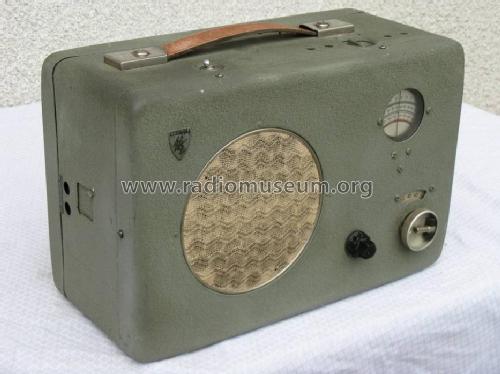

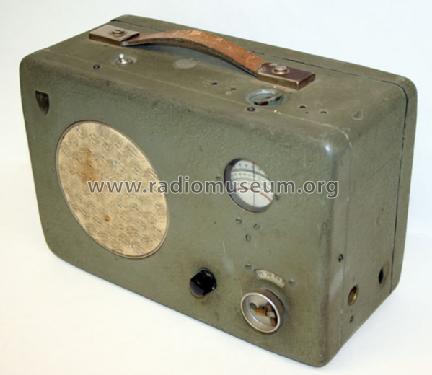

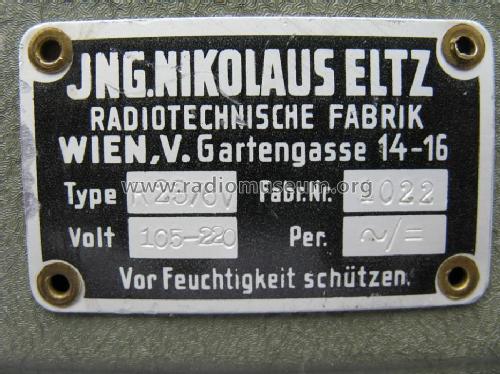

Radione R23/6V

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Brand

Eltz
Year: 1942 ?? Category: Broadcast Receiver - or past WW2 Tuner

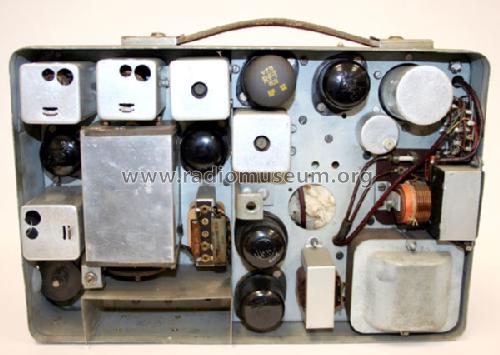

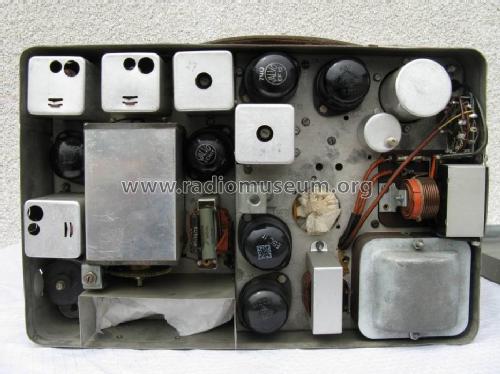

Valves / Tubes 6: EF13 ECH11 EF12 EBC11 EDD11 EZ11
Main principle Superhet with RF-stage; ZF/IF 469 kHz; something special ? Please give information (notes)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / 105-220 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 cm = 6.5 inch
Power out
from Radiomuseum.org Model: R23 - Radione RADIO Nikolaus Eltz;
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 350 x 240 x 170 mm / 13.8 x 9.4 x 6.7 inch

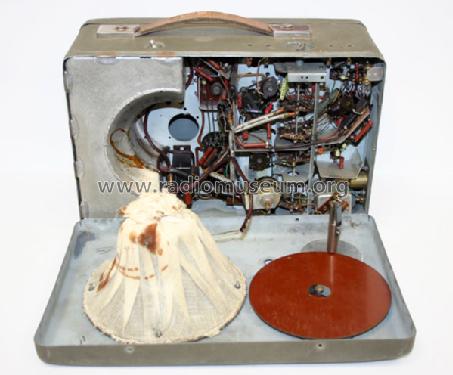

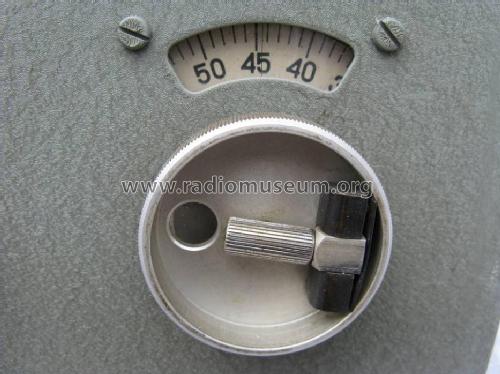

Notes Radione R2 chassis in military R3 cabinet. Band switch has 4 positions -- LW, MW, SW and Audio Amplification. Socket on top panel to the right of band switch is for Microphone, socket to the left -- for Headphones. No BFO -- AM only.
Net weight (2.2 lb = 1 kg) 10.6 kg / 23 lb 5.6 oz (23.348 lb)
Collectors' prices

Model page created by Valery Gromov. See "Data change" for further contributors.
