• Country
• Austria

• Manufacturer / Brand
• Radione (RADIO Nikolaus Eltz); Wien

• Year
• 1942 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 129826

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF13 ECH11 EF12 EBC11 EDD11 EZ11

• Main principle
• Superhet with RF-stage; ZF/IF 469,5 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Line / Batteries (any type) / 110-220 / 24 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16.5 cm = 6.5 inch

• Material
• Metal case

• from Radiomuseum.org
• Model: R2 KW 13m - 50,5m, 6 Röhren - Radione RADIO Nikolaus Eltz;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 350 x 240 x 170 mm / 13.8 x 9.4 x 6.7 inch

• Notes

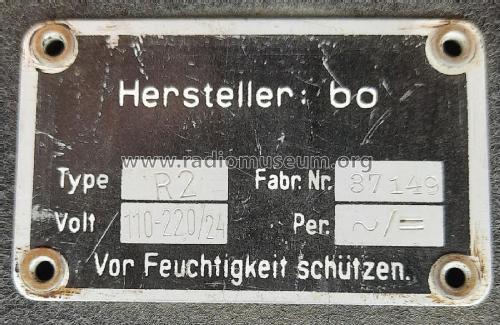

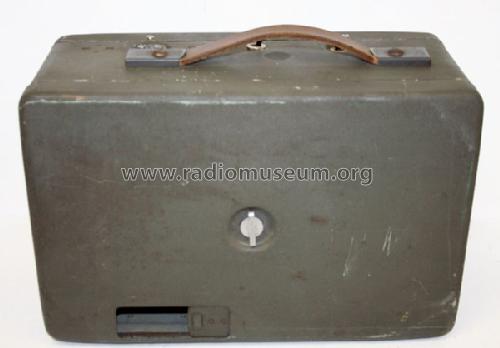

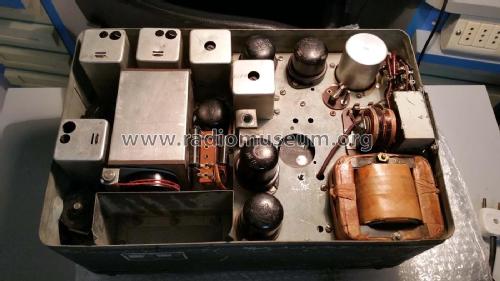

• Militärversion mit Schneckentrieb und Abstimmkurbel, jedoch "zivile" Skala mit Stationsnamen. Kein BFO. Hersteller "bo" = Wehrmachtscode für Radione.

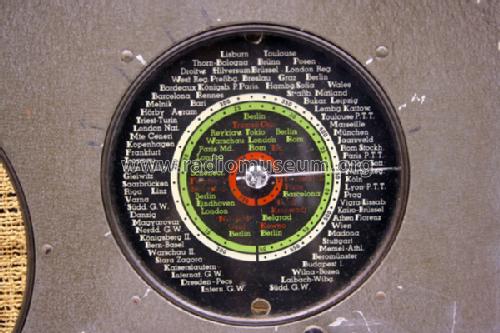

  Military type tuning button as in ER2, yet regular dial with city names and Short Waves up to 13 m (23 MHz). Worm gear inside. No BFO, i.e. AM only. Wehrmacht Identification of Radione on the label -- "Hersteller: bo".

• Net weight (2.2 lb = 1 kg)
• 10.6 kg / 23 lb 5.6 oz (23.348 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Valery Gromov. See "Data change" for further contributors.

• Other Models

• Here you find 520 models, 362 with images and 321 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Radione (RADIO Nikolaus Eltz); Wien
