• Year
  • 1948 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 10422

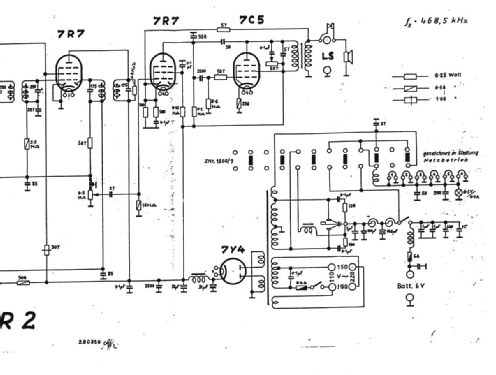

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 469 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Line / Batteries (any type) / 110; 150; 190; 220 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
  • Power out
  • 4 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: R2 Loctal tubes - Radione RADIO Nikolaus Eltz;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 350 x 235 x 175 mm / 13.8 x 9.3 x 6.9 inch
  • Notes
  • Unterschied zu R2A unklar.
  • Net weight (2.2 lb = 1 kg)
  • 10 kg / 22 lb 0.4 oz (22.026 lb)
  • Price in first year of sale
  • 2'240.00 öS
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb

 Collections | Museums | Literature

 Forum

Forum contributions about this model: Radione RADIO: R2 Loctal tubes

Threads: 1 | Posts: 1

Netzbetrieb: 110, 150, 190, 220V~, wählbar mit dem Würfelstecker.

Batteriebetrieb: 6V=

Empfangsbereiche: KW; MW; LW .

Quelle: Museumsbote

Gerhard Heigl, 23.Mar.04
