R2 (6V) KW 13m - 50,5m, 6 Röhren bunte Skala

Radione (RADIO Nikolaus Eltz); Wien

Data

Forum

Pictures

Collections

Country
Austria

Manufacturer / Brand
Radione (RADIO Nikolaus Eltz); Wien

Year
1942 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
225020

Schematics

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 1315397) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (3)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 2034648) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (3)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 2899281) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 3067) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

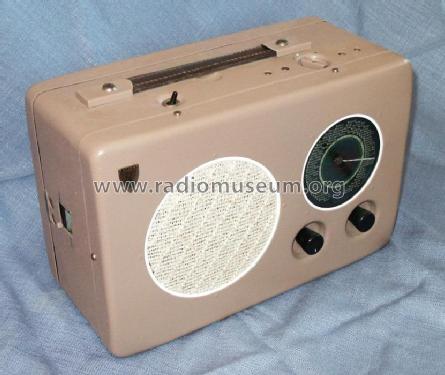

Radione R2

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 642130) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

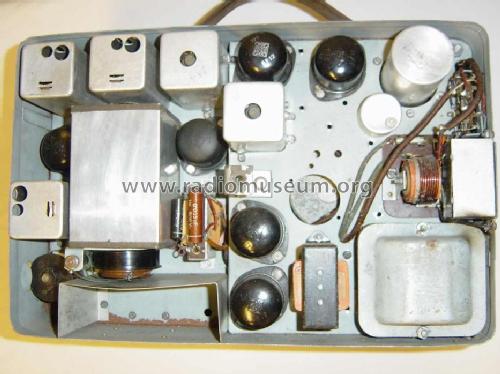

Radione R2 (Innenansicht)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 3068) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (2)
Radione R2 Skala

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 446694) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)
RKK Radio Museum --- www.rkk-museum.ru

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 446693) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)
RKK Radio Museum --- www.rkk-museum.ru

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 642129) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)
Radione R2

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 446690) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)
RKK Radio Museum --- www.rkk-museum.ru

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 240256) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)
Radione R2 (Typenschild)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 382264) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 1249081) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 1640474) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 109308) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 22235) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 36836) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 67664) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 90287) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 109306) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 109307) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 109309) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 240254) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)
Radione R2

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 272783) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 382263) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 382266) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 446691) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)
RKK Radio Museum --- www.rkk-museum.ru

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 446692) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)
RKK Radio Museum --- www.rkk-museum.ru

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 446695) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)
RKK Radio Museum --- www.rkk-museum.ru

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 642131) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)
Radione R2 (Skala)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 709874) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

R2 KW 13m - 50,5m, 6 Röhren; Radione RADIO (ID = 713809) Radio — Radione RADIO R2 KW 13m - 50,5m, 6 Röhren (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
6

Valves / Tubes
EF13 ECH11 EF12 EBC11 EDD11 EZ11

Main principle
Superhet with RF-stage; ZF/IF 469,5 kHz

Tuned circuits
7 AM circuit(s)

Wave bands
Broadcast, Long Wave and Short Wave.

Power type and voltage
Line / Batteries (any type) / 110; 150; 190; 220 / 6 Volt

Loudspeaker
Permanent or electro-dynamic (moving coil), system not known yet.

Material
Metal case

from Radiomuseum.org
Model: R2 KW 13m - 50,5m, 6 Röhren [bunte Skala] - Radione RADIO Nikolaus Eltz;

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
350 x 235 x 175 mm / 13.8 x 9.3 x 6.9 inch

Notes
2 Ausführungen:

Batterieanschluss ein- oder zweipolig.

Net weight (2.2 lb = 1 kg)
10 kg / 22 lb 0.4 oz (22.026 lb)

Literature/Schematics (1)
-- Original-techn. papers.

Author
Model page created by Wolfgang Bauer. See "Data change" for further contributors.
