R2N (6V) Loctal tubes

R2N Loctal tubes; Radione RADIO (ID = 799724) Radio

R2N Loctal tubes; Radione RADIO (ID = 799725) Radio
R2N Loctal tubes; Radione RADIO (ID = 713027) Radio R2N Loctal tubes; Radione RADIO (ID = 713028) Radio
Use red slider bar for more.
R2N Loctal tubes; Radione RADIO (ID = 713027) Radio

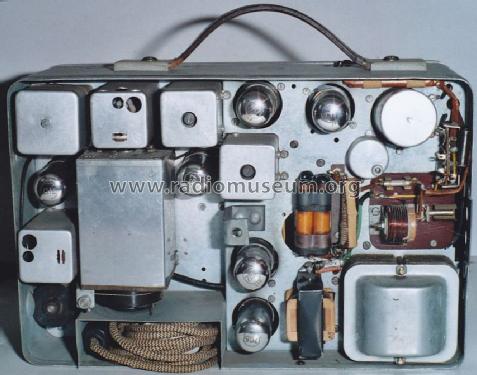

Radione RADIO: R2N Loctal tubes [Radio] ID = 713027 900x630
Select picture or schematic to display from thumbnails on the right and click for download.
For model R2N (6V) Loctal tubes, Radione (RADIO Nikolaus Eltz); Wien:
Skala: Rekonstruktion (als Foto von einem vergleichbarem Modell) - Modell befindet sich nicht mehr in meinem Besitz -

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Brand

Eltz
Year: 1948 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 7H7 7S7 7R7 7R7 7C5 7Y4
Main principle Superhet with RF-stage; ZF/IF 469 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 110; 150; 190; 220 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: R2N Loctal tubes - Radione RADIO Nikolaus Eltz;
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 350 x 235 x 175 mm / 13.8 x 9.3 x 6.9 inch
Notes Ohne LW, dafür 2xKW. Netzspannungsauswahl über den Würfelstecker am Netzkabel; Ausführung für 6-V-Akkubetrieb (Zerhacker), Minus an Masse. KW-Bereiche: 3···7,8 und 7,9···22 MHz. Unterschied unklar zu R2NA.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
