Stereo-Jupiter ; Radione RADIO (ID = 110825) Radio

Stereo-Jupiter ; Radione RADIO (ID = 110826) Radio

Stereo-Jupiter ; Radione RADIO (ID = 110827) Radio

Stereo-Jupiter ; Radione RADIO (ID = 1798652) Radio
Stereo-Jupiter ; Radione RADIO (ID = 157226) Radio Stereo-Jupiter ; Radione RADIO (ID = 157227) Radio
Stereo-Jupiter ; Radione RADIO (ID = 157228) Radio Stereo-Jupiter ; Radione RADIO (ID = 1036898) Radio
Stereo-Jupiter ; Radione RADIO (ID = 1036899) Radio
Use red slider bar for more.
Stereo-Jupiter ; Radione RADIO (ID = 157226) Radio

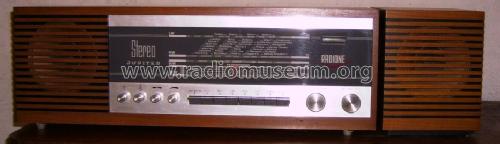

Radione RADIO: Stereo-Jupiter [Radio] ID = 157226 932x397
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo-Jupiter, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Brand

Eltz
Year: 1967/1968 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EF89 ECF80 ECL86 EMM803 ECL86
Semiconductors (the count is only for transistors) 2: BF173 BF195
Main principle Superheterodyne (common); ZF/IF 452/10420 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 125, 220, 240 Volt
Loudspeaker 2 Loudspeakers / Ø 15 cm = 5.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Stereo-Jupiter - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 645 x 125 x 230 mm / 25.4 x 4.9 x 9.1 inch
Notes Mit eingebautem Stereodecoder.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Radione (RADIO Nikolaus Eltz); Wien
