Stereo Matic

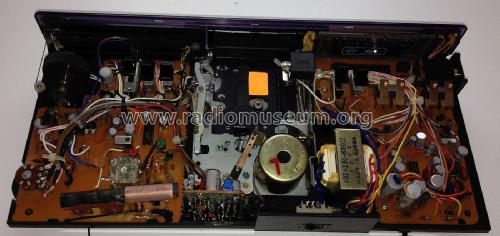

Stereo Matic ; Radione RADIO (ID = 2447210) Radio Stereo Matic ; Radione RADIO (ID = 2447212) Radio
Stereo Matic ; Radione RADIO (ID = 2447211) Radio Stereo Matic ; Radione RADIO (ID = 2447213) Radio
Use red slider bar for more.
Stereo Matic ; Radione RADIO (ID = 2447210) Radio
Radione RADIO: Stereo Matic [Radio] ID = 2447210 1400x512
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Matic, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Brand

Eltz
Year: 1978 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1: 4-LT-16
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Stereo Matic - Radione RADIO Nikolaus Eltz;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 360 x 72 x 170 mm / 14.2 x 2.8 x 6.7 inch
Notes

Stereo-Uhrenradio mit Front Cassetteneinschub. 6,3 mm Klinkenbuchse. Wecken mit Summer, Radio- oder Kassettenteil.

Net weight (2.2 lb = 1 kg) 2.095 kg / 4 lb 9.8 oz (4.615 lb)
Price in first year of sale 2'990.00 ATS
Literature/Schematics (1) Elektrohansa Prospekt 1978

Model page created by Manfred Kröll † 2.9.2013. See "Data change" for further contributors.
