Vollautomat TR159 ab Nr. > 56895

Vollautomat TR159; Radione RADIO (ID = 203323) Television

Vollautomat TR159; Radione RADIO (ID = 203324) Television
Vollautomat TR159; Radione RADIO (ID = 2029055) Television
Use red slider bar for more.
Vollautomat TR159; Radione RADIO (ID = 2029055) Television

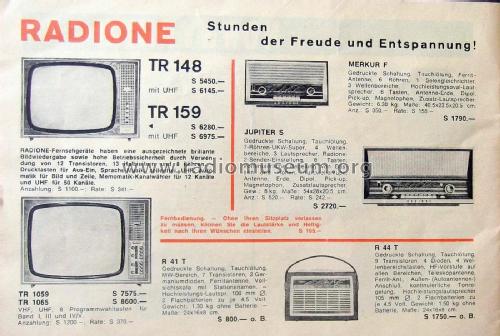

Radione RADIO: Vollautomat TR159 [Television] ID = 2029055 1400x941
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vollautomat TR159 ab Nr. > 56895, Radione (RADIO Nikolaus Eltz); Wien:
Elektro Haushalt 1965

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Brand

Eltz
Year: 1965 Category: Television Receiver (TV) or Monitor
Valves / Tubes 9: PCC189 PCF86 PCL86 PCL84 PL84 PL500 PY88 DY87 A59-23W
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Vollautomat TR159 [ab Nr. > 56895] - Radione RADIO Nikolaus Eltz;
Notes VHF Röhren/UHF Transistor Tuner, 14 Dioden, modularer Aufbau.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Radione (RADIO Nikolaus Eltz); Wien
Here you find 513 models, 355 with images and 314 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
