Wehrmacht R3 (6 Volt)
Radione (RADIO Nikolaus Eltz); Wien
- Country
- Austria
- Manufacturer / Brand
- Radione (RADIO Nikolaus Eltz); Wien
- Year
- 1943/1944
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 10380
Grossaufnahme Skala R3
Knöpfe nicht Original
A_Radione_R3_neues Netzteil.jpg
Ein spezieller R2, Front wie R3, ohne BFO.
Ebay auction by user i4sfm 201068072572
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Line / Batteries (any type) / 110; 150; 190; 220 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Wehrmacht R3 - Radione RADIO Nikolaus Eltz;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 360 x 240 x 180 mm / 14.2 x 9.4 x 7.1 inch
- Notes
- mit BFO;vereinfachtes Mod. Empfangsbereiche: KW 11,68-20,27m; KW 20,27-44,77m; GW 44,77-120m. Quelle: Museumsbote
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

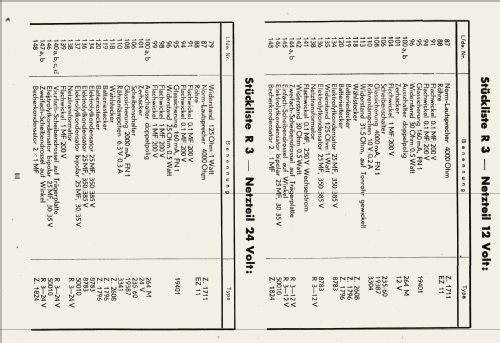

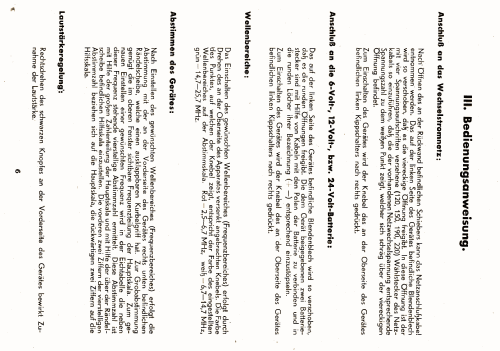

- Literature/Schematics (1)
- -- Original-techn. papers.
