Folkemottager Nett2

Folkemottager ; Radionette; Oslo (ID = 1314154) Radio Folkemottager ; Radionette; Oslo (ID = 1314158) Radio
Folkemottager ; Radionette; Oslo (ID = 1314159) Radio Folkemottager ; Radionette; Oslo (ID = 1314160) Radio
Folkemottager ; Radionette; Oslo (ID = 1314161) Radio Folkemottager ; Radionette; Oslo (ID = 1314162) Radio
Use red slider bar for more.

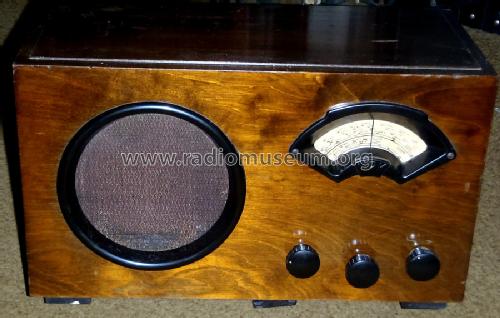

Folkemottager ; Radionette; Oslo (ID = 1314154) Radio
Radionette; Oslo: Folkemottager [Radio] ID = 1314154 900x573
Select picture or schematic to display from thumbnails on the right and click for download.
For model Folkemottager Nett2, Radionette; Oslo

Country:  Norway
Manufacturer / Brand:  Radionette; Oslo
Year: 1937 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: E446 E453_6pin 506
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: Folkemottager [Nett2] - Radionette; Oslo
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 430 x 250 x 205 mm / 16.9 x 9.8 x 8.1 inch
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)

Model page created by Wolfgang Möller. See "Data change" for further contributors.



All listed radios etc. from Radionette; Oslo
Here you find 134 models, 124 with images and 45 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Radionette; Oslo: Folkemottager
Threads: 1 | Posts: 5
Hits: 997     Replies: 4
radionette: incoherent socket on Folkemottager Nett2
Pierre De Man
02.Sep.16
  1

I just got a Folkemottager Nett2 with no tube. The output pentode is supposed to be E453-6 pin, but the corresponding socket (in the middle) looks like a P8A-8pin.

I wish to know what tube could have been used in this radio.  The cabling uses 7 of the 8 contacts of the sockets.

Any hints would be welcome.



Jacob Roschy
02.Sep.16
  2

Hello Pierre,

there is no direct successor of the E453. As 7 contacts are wired, it's most likely the very common AL4 was used as substitute.
Note the grid bias voltages of E453 and AL4 are very different, so a bias re-matching might be necessary.

Best Regards, Jacob

Pierre De Man
03.Sep.16
  3

Hello Jacob,

thank you for this information, it seems indeed a serious candidate.

I think this socket swap has been made by the previous owner. It is fixed by means of screws (not rivets). Some capacitors seems also more recent than others. The bias could have been adapted.

Anyway I will have to draw the schematic to compare with the regular schematic and possibly confirm AL4.



Regards

Pierre

Pierre De Man
04.Sep.16
  4

After checking the wiring of my radio, the cathode resistor of the output pentode is around 110 ohm which seems consistent with what is adviced for the AL4 (E453 would need 500 ohms). Jacob, I think you were right.

Pierre



Jacob Roschy
04.Sep.16
  5

Hello Pierre,

the choice of P8-base substitute types for the E453 is rather small, only the types AL1, AL2, AL3 and AL4 are more or less qualified.

7 wired contacts fits only to AL3 and AL4, whereby the AL3 was only short-lived and is almost identical to the AL4.

The AL2 has a top grid cap, hence without control grid at the socket, the AL1 is directly heated, hence without cathode connection on the socket.

Regards, Jacob
