Junior

Junior ; Radionette; Oslo (ID = 2229897) Radio
Junior ; Radionette; Oslo (ID = 54314) Radio Junior ; Radionette; Oslo (ID = 594655) Radio
Junior ; Radionette; Oslo (ID = 1295591) Radio
Use red slider bar for more.

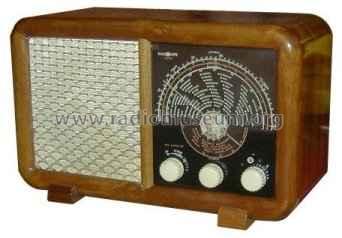

Junior ; Radionette; Oslo (ID = 54314) Radio
Radionette; Oslo: Junior [Radio] ID = 54314 342x238
Select picture or schematic to display from thumbnails on the right and click for download.
For model Junior, Radionette; Oslo

Country:  Norway
Manufacturer / Brand:  Radionette; Oslo
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: ECH81 EAF42 ECL113
Semiconductors (the count is only for transistors) E250C85
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 210; 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Junior - Radionette; Oslo
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 340 x 200 x 150 mm / 13.4 x 7.9 x 5.9 inch
Price in first year of sale 298.00 NKr
Literature/Schematics (1) -- Schematic

Model page created by Ernst Rykkje. See "Data change" for further contributors.
