K3

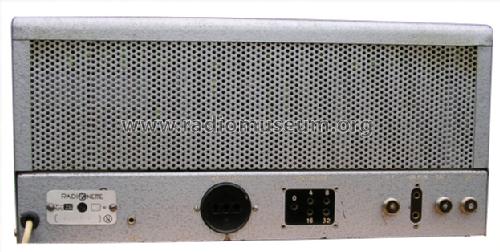

K3; Radionette; Oslo (ID = 250498) Ampl/Mixer K3; Radionette; Oslo (ID = 250499) Ampl/Mixer
K3; Radionette; Oslo (ID = 250500) Ampl/Mixer
Use red slider bar for more.
K3; Radionette; Oslo (ID = 250498) Ampl/Mixer
Radionette; Oslo: K3 [Ampl/Mixer] ID = 250498 758x466
Select picture or schematic to display from thumbnails on the right and click for download.
For model K3, Radionette; Oslo

Country:  Norway
Manufacturer / Brand:  Radionette; Oslo
Year: 1963 ? Category: Audio Amplifier or -mixer
Valves / Tubes 11: EF86 EF86 EF86 EF86 ECC83 6L6GC 6L6GC 6L6GC 6L6GC 5U4G 5U4G
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 130; 150; 210; 230 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: K3 - Radionette; Oslo
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 490 x 203 x 200 mm / 19.3 x 8 x 7.9 inch
Price in first year of sale 938.00 NKr
Source of data - - Data from my own collection

Model page created by Ernst Rykkje. See "Data change" for further contributors.
