• Country
• France

• Manufacturer / Brand
• Radios; Levallois-Perret

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 121791

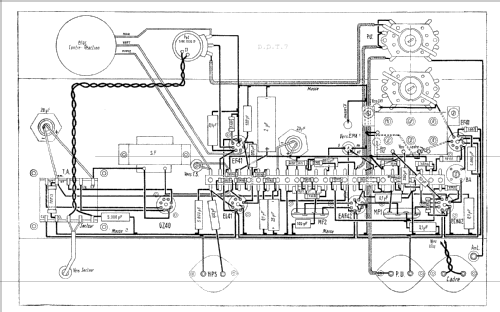

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF41 ECH42 EAF42 EF41 EM4 EL41 GZ40

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: DDT7 - Radios; Levallois-Perret

• Shape
• Tablemodel, low profile (big size).

• Notes
• Cadre antiparasite incorporé avec contre-réaction B.F. à 4 positions.

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur 1951

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
