Star 63A
Radio-Star; Nice
- Country
- France
- Manufacturer / Brand
- Radio-Star; Nice
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 194423
Le commerce 1952
Le Commerce 1952
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Star 63A - Radio-Star; Nice
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 540 x 320 x 240 mm / 21.3 x 12.6 x 9.4 inch
- Notes
-

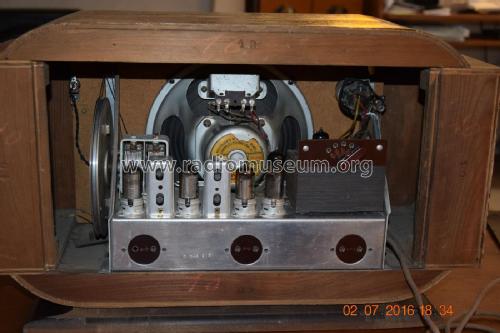

5 gammes d'ondes dont 3 OC de 13 à 50 m. Prises antenne/terre, PU et HP extérieur à l'arrière du chassis.
Ébénisterie "à oreilles" avec marqueterie. Grille HP en métal, cadran des stations en plastique. Existe en versions pour 25 et 50 périodes.
- Source of data
- -- Original prospect or advert
- Mentioned in
- Le Commerce 1952
- Literature/Schematics (1)
- Le grand livre de la TSF (Doctsf Ref 22110)
- Author
- Model page created by Eddy Rischmann. See "Data change" for further contributors.
