Starlet 34 Colonial

Starlet 34; Radio-Star; Nice (ID = 2499987) Radio Starlet 34; Radio-Star; Nice (ID = 2499988) Radio
Starlet 34; Radio-Star; Nice (ID = 2499989) Radio Starlet 34; Radio-Star; Nice (ID = 2499990) Radio
Starlet 34; Radio-Star; Nice (ID = 2499991) Radio Starlet 34; Radio-Star; Nice (ID = 452456) Radio
Starlet 34; Radio-Star; Nice (ID = 452455) Radio Starlet 34; Radio-Star; Nice (ID = 452453) Radio
Starlet 34; Radio-Star; Nice (ID = 452461) Radio Starlet 34; Radio-Star; Nice (ID = 452457) Radio
Use red slider bar for more.

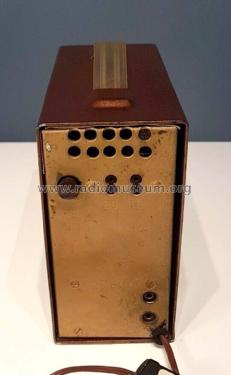

Starlet 34; Radio-Star; Nice (ID = 2499987) Radio
Radio-Star; Nice: Starlet 34 [Radio] ID = 2499987 900x1079
Select picture or schematic to display from thumbnails on the right and click for download.
For model Starlet 34 Colonial, Radio-Star; Nice:
eaby.fr #254492394748 seller jeanpierrcardon0

Country:  France
Manufacturer / Brand:  Radio-Star; Nice
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
schematic requested
Main principle Superheterodyne (common); ZF/IF 472 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Starlet 34 [Colonial] - Radio-Star; Nice
Material Metal case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 90 x 180 x 210 mm / 3.5 x 7.1 x 8.3 inch
Notes

Modele colonial, 6 gammes d'ondes: PO, OC1, OC2, OC3, OC4 et OC5, OCs de 13 à 150 m. Prises antenne-terre, pick-up, HP supplémentaire.

Le dépliant mentionne 6 lampes pour ce récepteur.

Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Mentioned in -- Original-techn. papers. (Dépliant 1950)
Literature/Schematics (1) Le grand livre de la TSF (Doctsf Ref 21538)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Radio-Star; Nice
Here you find 43 models, 42 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
