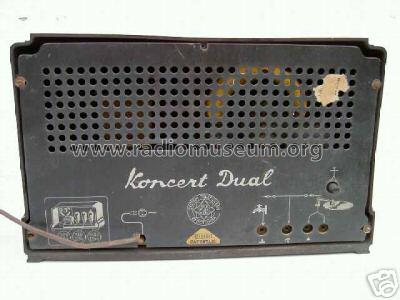

Koncert Dual ; Radiotechna, spol. s (ID = 1208392) Radio
Radiotechna, spol. s: Koncert Dual [Radio] ID = 1208392 933x808
Select picture or schematic to display from thumbnails on the right and click for download.
For model Koncert Dual, Radiotechna, spol. s r. o., Praha-Prelouc

Country:  Czechoslovakia
Manufacturer / Brand:  Radiotechna, spol. s r. o., Praha-Prelouc
alternative name

Kresl & spol, CS
Brand
Telefunken Praha
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: RENS1284 RES374 RGN564
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13.5 cm = 5.3 inch
Power out
from Radiomuseum.org Model: Koncert Dual - Radiotechna, spol. s r. o.,
Material Bakelite case
Dimensions (WHD) 408 x 252 x 158 mm / 16.1 x 9.9 x 6.2 inch
Price in first year of sale 950.00 Kc
External source of data Erb
Source of data Ceskoslovenske prijimace 1933-1945, Baudys 1947
Mentioned in Ceskoslovenske prijimace 1933-1945, Baudys 1947
