Daugava (gramophone)

Daugava ; Radiotehnika RT - (ID = 100287) Radio

Daugava ; Radiotehnika RT - (ID = 1986682) Radio
Daugava ; Radiotehnika RT - (ID = 111848) Radio Daugava ; Radiotehnika RT - (ID = 1604444) Radio
Daugava ; Radiotehnika RT - (ID = 101752) Radio Daugava ; Radiotehnika RT - (ID = 101751) Radio
Daugava ; Radiotehnika RT - (ID = 101750) Radio Daugava ; Radiotehnika RT - (ID = 101747) Radio
Daugava ; Radiotehnika RT - (ID = 101748) Radio Daugava ; Radiotehnika RT - (ID = 101749) Radio
Daugava ; Radiotehnika RT - (ID = 661564) Radio Daugava ; Radiotehnika RT - (ID = 661566) Radio
Use red slider bar for more.
Daugava ; Radiotehnika RT - (ID = 111848) Radio

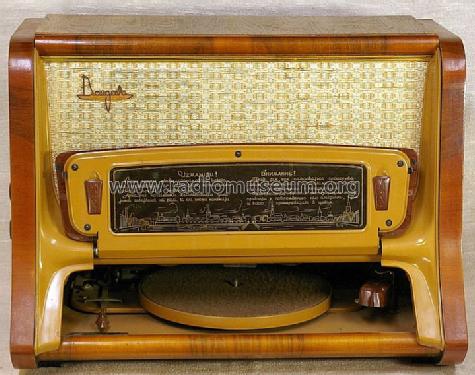

Radiotehnika RT -: Daugava [Radio] ID = 111848 870x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Daugava (gramophone), Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
alternative name

A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works
Year: 1955–1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6А7 6Б8С 6Н9С 6П3С 6Е5С 5Ц4С
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110, 127, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Daugava - Radiotehnika RT - after 1951
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 535 x 400 x 316 mm / 21.1 x 15.7 x 12.4 inch
Notes the first Soviet radio with keyboard wave band selector. Bandbreitenregelung
Net weight (2.2 lb = 1 kg) 21 kg / 46 lb 4.1 oz (46.256 lb)
Source of data -- Schematic
Mentioned in Past Soviet Union magazine RADIO Nr.01 - 1955

Model page created by Nikolaj Baranov. See "Data change" for further contributors.
