Festivals ; Radiotehnika RT - (ID = 2287034) Radio
Radiotehnika RT -: Festivals [Radio] ID = 2287034 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.

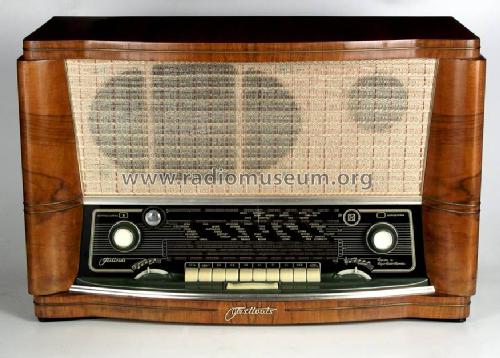

For model Festivals, Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
alternative name

A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: 6Н3П 6К4П 6К4П 6К4П 6Е5С 6И1П 6Х2П 6Н2П 6Н2П 6П14П 6П14П 6П14П
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker 4 Loudspeakers
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Festivals - Radiotehnika RT - after 1951
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 424 x 311 mm / 23.6 x 16.7 x 12.2 inch
Notes Top class radio. First Soviet (UdSSR) radio with cable remote control. Remote controle block 222 x 220 x 58 mm, weight with 6 m long cable 1,78 Kg. Loudspeaker 6 Watt (big ellipse), 2 x 4 Watt and 1 Watt.
Net weight (2.2 lb = 1 kg) 24.5 kg / 53 lb 15.4 oz (53.965 lb)
Collectors' prices
External source of data E. A. Levitin, Radiovescatelnyje prijomniki, Moscow 1960
Literature/Schematics (1) Radio und Fernsehen, 1958, Heft 19, Seiten 579-581

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
