Lux 63

Lux 63; Radio-Union; (ID = 1837029) Radio Lux 63; Radio-Union; (ID = 1837031) Radio

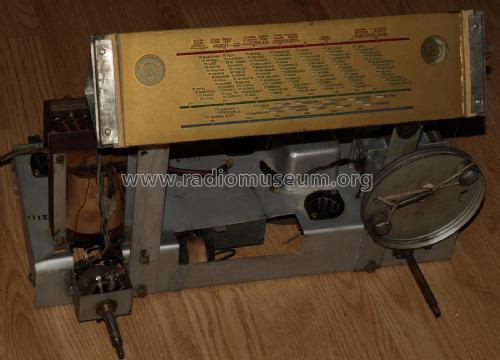

Lux 63; Radio-Union; (ID = 1837032) Radio Lux 63; Radio-Union; (ID = 1837034) Radio
Use red slider bar for more.
Lux 63; Radio-Union; (ID = 1837029) Radio
Radio-Union;: Lux 63 [Radio] ID = 1837029 1400x1135
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lux 63, Radio-Union; Warszawa

Country:  Poland
Manufacturer / Brand:  Radio-Union; Warszawa
Year: 1939 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: EK2 EF9 EBL1 AZ1
Main principle Superheterodyne (common); 1 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Lux 63 - Radio-Union; Warszawa
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 470 x 370 x 270 mm / 18.5 x 14.6 x 10.6 inch

Model page created by Tomasz Szczesniak. See "Data change" for further contributors.



All listed radios etc. from Radio-Union; Warszawa
Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
