- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Vision (where?)
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 127300

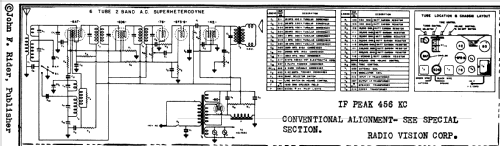

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: AX - Radio Vision where?
- Notes
-
Radio Vision AX, 2 Band A.C. Superheterodyne
- Mentioned in
- Rider's Perpetual, Volume 8 = 1937 and before (misc. 8-10)
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
