Oktâbr' (Oktiabr) {Октябрь}

Oktâbr' {Октябрь} ; Leningrad RADIST (ID = 273891) Radio

Oktâbr' {Октябрь} ; Leningrad RADIST (ID = 273892) Radio
Oktâbr' {Октябрь} ; Leningrad RADIST (ID = 273894) Radio Oktâbr' {Октябрь} ; Leningrad RADIST (ID = 273897) Radio
Oktâbr' {Октябрь} ; Leningrad RADIST (ID = 273896) Radio Oktâbr' {Октябрь} ; Leningrad RADIST (ID = 273893) Radio
Oktâbr' {Октябрь} ; Leningrad RADIST (ID = 273895) Radio Oktâbr' {Октябрь} ; Leningrad RADIST (ID = 689921) Radio
Oktâbr' {Октябрь} ; Leningrad RADIST (ID = 689922) Radio Oktâbr' {Октябрь} ; Leningrad RADIST (ID = 689923) Radio
Oktâbr' {Октябрь} ; Leningrad RADIST (ID = 982904) Radio Oktâbr' {Октябрь} ; Leningrad RADIST (ID = 1191387) Radio
Use red slider bar for more.
Oktâbr' {Октябрь} ; Leningrad RADIST (ID = 273894) Radio
Leningrad RADIST: Oktâbr' {Октябрь} [Radio] ID = 273894 637x485

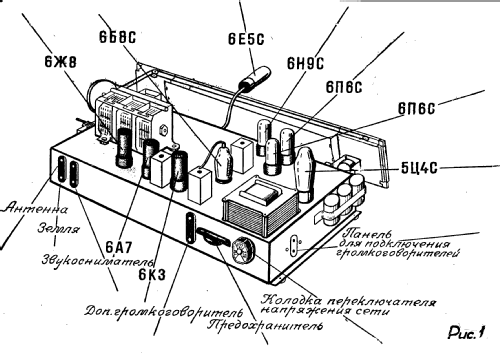

Select picture or schematic to display from thumbnails on the right and click for download.
For model Oktâbr' (Oktiabr) {Октябрь}, Leningrad RADIST Works:
Thanks for Valery Charcenko, Russia

Country:  Soviet Union
Manufacturer / Brand:  Leningrad RADIST Works
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6Ж8 6А7 6К3 6Б8С 6Е5С 6Н9С 6П6С 6П6С 5Ц4С
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 127, 220 Volt
Loudspeaker 2 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Oktâbr' {Октябрь} - Leningrad RADIST Works
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 630 x 410 x 330 mm / 24.8 x 16.1 x 13 inch
Notes This model - russian radio set "Oktiabr", Leningrad Metallic Works (see in RMorg) upgrade variant and from 1957 produced in "Radist" Plant. Other case design, very similar schemat.
Net weight (2.2 lb = 1 kg) 20 kg / 44 lb 0.8 oz (44.053 lb)
Source of data -- Collector info (Sammler)

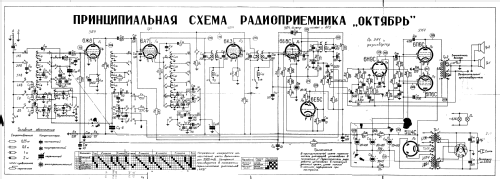

Mentioned in -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.



All listed radios etc. from Leningrad RADIST Works
Here you find 11 models, 9 with images and 7 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
