10980

10980 ; Radolek Co., Chicago (ID = 1570895) Radio
Use red slider bar for more.
10980 ; Radolek Co., Chicago (ID = 1570895) Radio

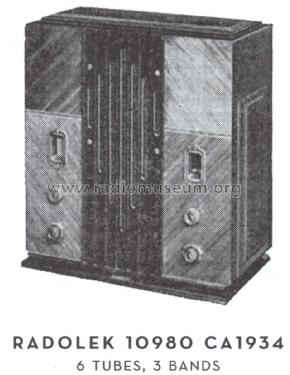

Radolek Co., Chicago: 10980 [Radio] ID = 1570895 933x1203
Select picture or schematic to display from thumbnails on the right and click for download.
For model 10980, Radolek Co., Chicago:
Image courtesy of Mark V. Stein for Radiomuseum.org use only. Cathedral and Tombstone Radios.

Country:  United States of America (USA)
Manufacturer / Brand:  Radolek Co., Chicago
Year: 1934 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Line (AC, UC or DC not known)
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 10980 - Radolek Co., Chicago
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Mentioned in Cathedral & Tombstone Radios (page 208.)

Model page created by Noemi Erb. See "Data change" for further contributors.
