• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 95119

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 105-120 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

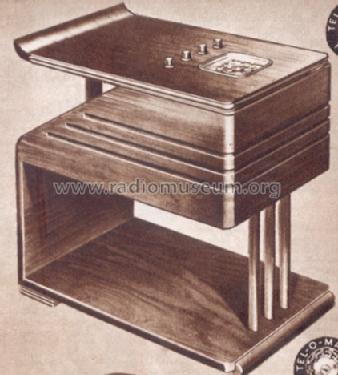

  • Model: 17534 - Radolek Co., Chicago
  • Shape
  • Console: Chairside Radio.
  • Dimensions (WHD)
  • 23 x 21 x 14.3 inch / 584 x 533 x 363 mm
  • Notes
  • Armchair Tel-o-matic tuning.
  • Price in first year of sale
  • 65.00 $
  • Literature/Schematics (1)
  • 1938 Radolek Catalog
  • Author
  • Model page created by Vitor Oliveira. See "Data change" for further contributors.
