• Country
• United States of America (USA)

• Manufacturer / Brand
• Radolek Co., Chicago

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 95192

• Number of Tubes
• 6

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Storage and/or dry batteries / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

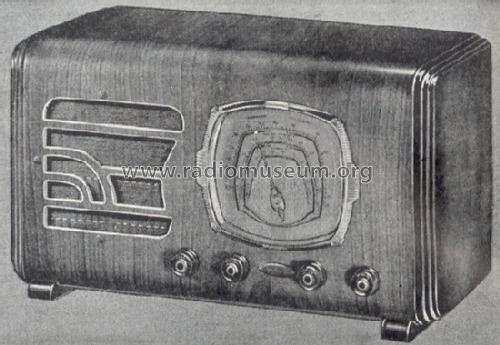

• Model: 17543 - Radolek Co., Chicago

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 19 x 11.5 x 10 inch / 483 x 292 x 254 mm

• Price in first year of sale
• 55.00 $

• Literature/Schematics (1)
• 1938 Radolek Catalog

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
