• Country
• United States of America (USA)

• Manufacturer / Brand
• Radolek Co., Chicago

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 365917

• Number of Tubes
• 6

• Valves / Tubes
• 1C6 34 32 30 30 19

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Storage and/or dry batteries / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

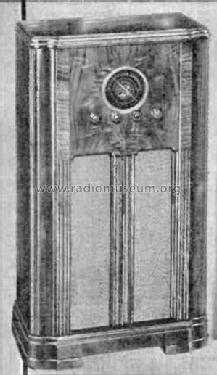

• Model: 6 Tube Battery Console 10935 - Radolek Co., Chicago

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 20 x 46 x 10 inch / 508 x 1168 x 254 mm

• Notes

• 6 Tubes plus vibrator. Price listed less battery.

• Price in first year of sale
• 33.95 USD

• Mentioned in
• Radolek Catalog (catalog 1936 page 162 "NEW")

• Author
• Model page created by Glen Orriss. See "Data change" for further contributors.

• Other Models

• Here you find 358 models, 272 with images and 66 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
