Arena ; Rafena Werke (ID = 413562) Television

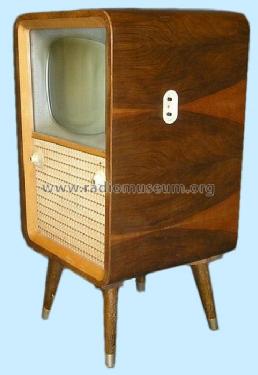

Rafena Werke: Arena [Television] ID = 413562 462x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arena, Rafena Werke Radeberg, VEB; Radeberg (Ostd.):
By courtesy of Lauritz.com (Bild bearbeitet)

Country:  Germany
Manufacturer / Brand:  Rafena Werke Radeberg, VEB; Radeberg (Ostd.)
Brand

VEB Rafena; Radeberg (Ostd.)
Year: 1961/1962 Category: Television Receiver (TV) or Monitor
Valves / Tubes 15: B43M1
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Arena - Rafena Werke Radeberg, VEB;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 560 x 1000 x 470 mm / 22 x 39.4 x 18.5 inch
Notes Fernseh-Chassis = Patriot FE847A, VHF.
Verkauft wurden 3014 Stück.
Mentioned in "Fernsehgeräteproduktion in Radeberg"

Model page created by Wolfgang Lill. See "Data change" for further contributors.
