Empfänger- Messsender EMS 562

Empfänger- Messsender EMS 562; Rafena Werke (ID = 2391446) Equipment Empfänger- Messsender EMS 562; Rafena Werke (ID = 2391448) Equipment
Empfänger- Messsender EMS 562; Rafena Werke (ID = 2391449) Equipment Empfänger- Messsender EMS 562; Rafena Werke (ID = 2391450) Equipment
Use red slider bar for more.
Empfänger- Messsender EMS 562; Rafena Werke (ID = 2391446) Equipment

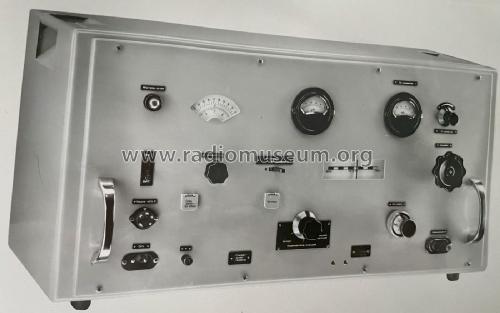

Rafena Werke: Empfänger- Messsender EMS 562 [Equipment] ID = 2391446 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Empfänger- Messsender EMS 562, Rafena Werke Radeberg, VEB; Radeberg (Ostd.):

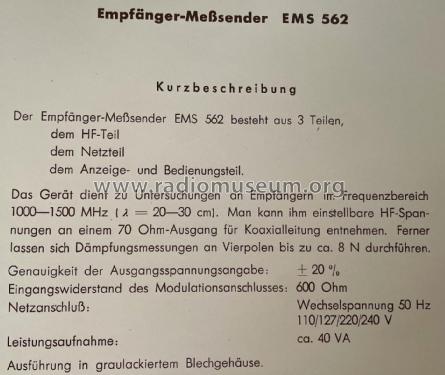

Technische Beschreibung des Herstellers

Country:  Germany
Manufacturer / Brand:  Rafena Werke Radeberg, VEB; Radeberg (Ostd.)
Brand

VEB Rafena; Radeberg (Ostd.)
Year: 1956 Category: Service- or Lab Equipment
Valves / Tubes 1: LD11
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Empfänger- Messsender EMS 562 - Rafena Werke Radeberg, VEB;
Material Metal case
Dimensions (WHD) 820 x 420 x 400 mm / 32.3 x 16.5 x 15.7 inch
Notes

Oszillator: Topfkreissender in Gitterbasisschaltung mit Metallkeramikröhre LD11.

Frequenzbereich : 1.000 ... 1.700 MHz

Ausgangswiderstand  Z = 70 Ω  (Koaxialleitung 5/16 mm )

Ausgangsspannung: 5 µV ...25 mV , stetig regelbar

Modulation: Fremdmodulation

Modulationsfrequenz : 200... 20.000 Hz



































Net weight (2.2 lb = 1 kg) 50 kg / 110 lb 2.1 oz (110.132 lb)
